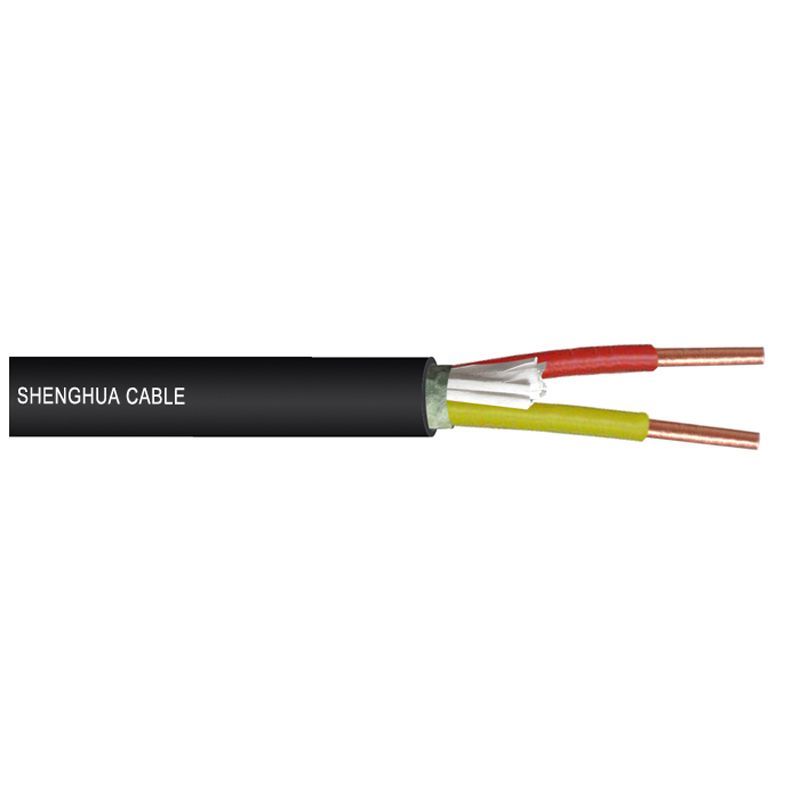

Low Voltage PVC Insulation PVC Sheath Control Cable

Model NO. : KVV KVVP KVVR

Current : DC & AC

Insulation Material : PVC

Sheath Material : PVC Insulation

Material Shape : Round Wire

Wire Core Material : Bare Copper Wire

Certification : ISO, CCC, CE, RoHS

Model : KVVP

Brand : Xinxin

Color : Black/White/Green/Red

MOQ : 500m

Conductor : Copper /Aluminum

Insulation : PVC

Sheath : PVC

Payment : T/T L/C

Transport Package : Wooden Steel Drum

Specification : 1.1*1.1*0.98m

Trademark : Shanghai Shenghua Cable Group

Origin : Shanghai, China

HS Code : 8544492100

Supply Ability : 100000

Contact Now

1.Standards:
Manufacture according to GB/T 9330,IEC 60502-1

2. Cable structure:Structure:
2.1 Rated voltage: 450/750V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: multicore stranded
2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire
2.6 Inner sheath (applicable if there is an armoured layer): PVC/PE
2.7 Armour layer: Galvanized steel wire / Steel tape
2.8 Outersheath: PVC/PE/LSHF
2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.

3.APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 450V/750V
Test Voltage:2500V
Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)
Temperature range During Installation (Mobile state): -5°C - +40°C
Minimum bending radius: 10 X Overall Diameter
